One of the most common misconceptions in EMC laboratory design is that monitoring equipment has little influence on test accuracy.

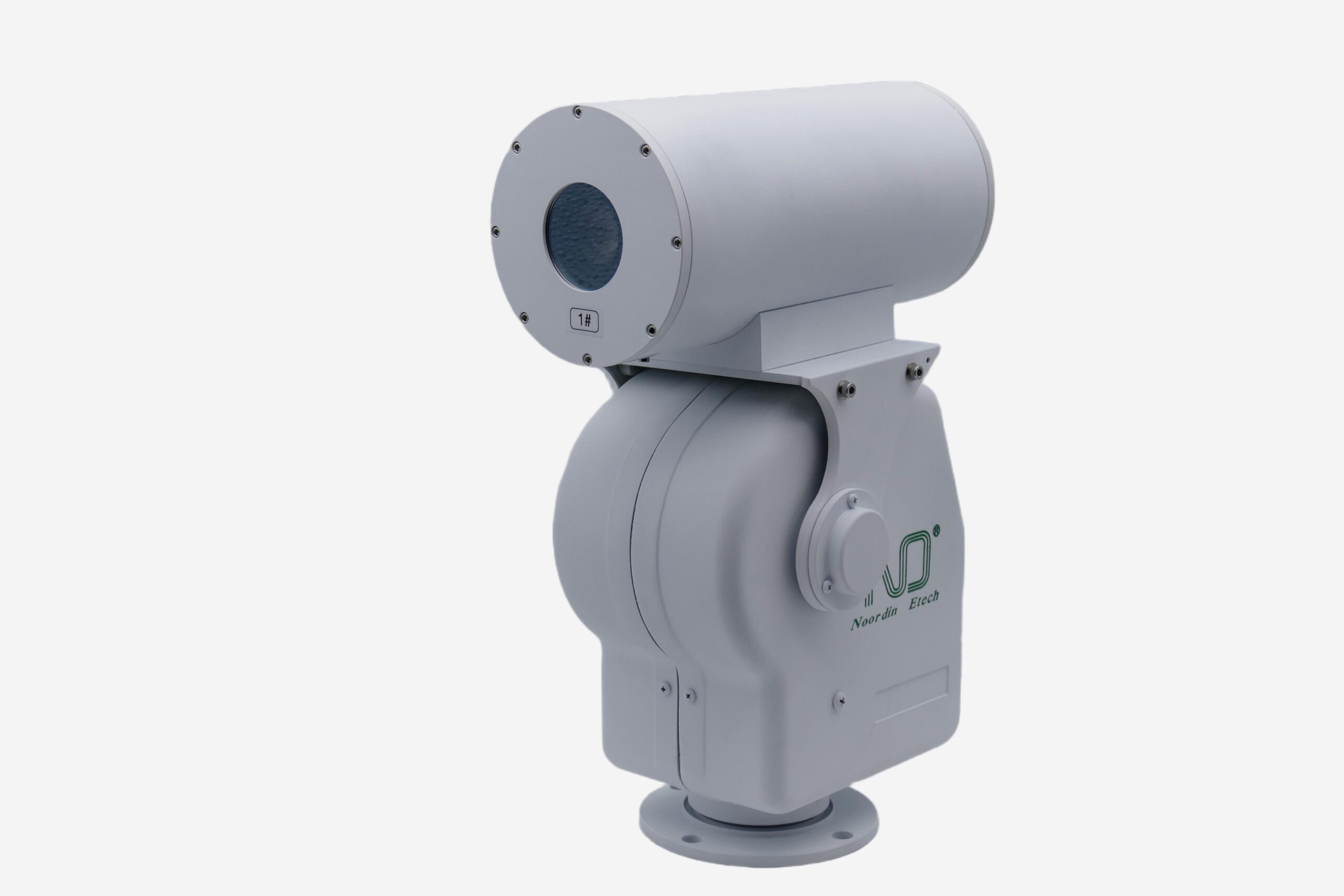

In reality, a poorly designed Anechoic Chamber Monitoring System can become an unintended source of conducted and radiated interference.
Do not evaluate a monitoring system by image quality alone.
Do not ignore its electromagnetic compatibility.
Monitoring Is Part of the EMC System
An EMC Chamber Monitoring System should work seamlessly with:
- Shielded rooms
- Anechoic chambers
- Power line filters
- Optical communication systems
Every component must be designed to minimize electromagnetic emissions.
Why Optical Transmission Matters
Copper communication cables can act as antennas, allowing unwanted signals to enter or leave the chamber.
For this reason, professional monitoring systems often rely on fiber-optic communication.
Benefits include:
- EMI immunity
- Signal integrity
- Electrical isolation
- Reliable long-distance transmission
Fiber optics help ensure that monitoring does not compromise test results.
Camera Placement Is Equally Important
Installing additional cameras does not automatically improve visibility.
Do not add cameras without considering:
- Viewing angles
- Test antenna locations
- Equipment movement
- Blind spots
A properly planned camera layout often performs better than simply increasing camera quantity.
Watch the Video
Conclusion
A successful Anechoic Chamber Monitoring System combines EMC compatibility, optical isolation, and intelligent camera placement.
The goal is not simply to record the test—but to observe it without influencing it.
