In EMC test facilities, anechoic chambers and shielded rooms are designed to create an electromagnetically controlled environment where emissions and immunity measurements can be performed with high repeatability and accuracy. While much attention is typically given to RF absorbers, shielding panels, doors, and power line filters, signal and control lines entering or exiting the chamber often represent a hidden vulnerability.

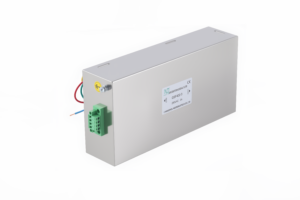

Signal line filters play a critical role in preserving shielding integrity while allowing essential low-level control, monitoring, and measurement signals to pass through chamber boundaries. Without proper filtering, these lines can become unintended antennas, coupling external noise into the chamber or leaking internal interference outward—compromising both compliance and test validity.
Typical Signal Lines in EMC Chambers
Unlike power lines, signal lines carry low-voltage, low-current signals that are particularly susceptible to electromagnetic interference. Common signal connections in EMC chambers include:
-
Door interlock and safety circuits
-
Chamber lighting control signals
-
Turntable and antenna mast control lines
-
Temperature, humidity, and environmental sensors
-
Emergency stop and alarm systems
-
Low-speed communication signals (RS-232, RS-485, CAN, GPIO)
Each of these lines must penetrate the chamber wall without degrading overall shielding effectiveness.
Why Unfiltered Signal Lines Are a Problem
An unfiltered signal cable passing through a shielded boundary introduces multiple EMC risks:
-
Shielding Discontinuity
Even a small aperture created by a cable feedthrough can significantly reduce shielding effectiveness, especially at higher frequencies. -
Conducted Noise Coupling
External electromagnetic noise can travel along signal conductors into the chamber, elevating the noise floor during sensitive measurements. -
Radiated Leakage
Internal test signals or chamber equipment noise may escape the chamber via signal cables, potentially violating site EMC requirements. -
Measurement Instability
Noise on control or sensor lines can cause erratic behavior in turntables, antenna positioners, or monitoring systems, affecting test repeatability.
How Signal Line Filters Work in Shielded Environments
Signal line filters are typically installed directly at the chamber penetration point, forming a filtered feedthrough interface. Their primary functions include:
-
Attenuating conducted EMI over a defined frequency range
-
Maintaining 360-degree shield continuity at the chamber wall
-
Providing a controlled impedance path for signal transmission
-
Preventing cable shields from acting as antennas
Most signal filters used in EMC chambers employ low-pass filter topologies optimized for control and monitoring signals rather than power delivery.
Common Types of Signal Line Filters for EMC Chambers
1. Capacitive Feedthrough Filters
Used for single-ended low-speed signals. These provide high attenuation at RF frequencies while minimally affecting DC or low-frequency signals.
2. Pi-Type and LC Filters
Applied where stronger suppression is required, particularly in electrically noisy test environments.
3. Multi-Line Filter Connectors
Compact solutions integrating multiple filtered lines in a single connector housing—ideal for complex control panels.
4. Custom Filter Panels
Used when multiple signal types with different bandwidth requirements must pass through the same shielded interface.
Installation Best Practices
To achieve maximum performance, signal line filters must be installed correctly:
-
Bond filter housings directly to the chamber wall using conductive gaskets
-
Minimize unfiltered cable length on both sides of the penetration
-
Separate signal and power feedthroughs physically
-
Avoid mixing high-speed data lines with low-level control signals on the same filter
Proper grounding and mechanical integration are just as important as the electrical characteristics of the filter itself.
Signal Filters vs Fiber-Optic Alternatives
In some EMC chamber designs, fiber-optic links are used to eliminate conductive paths altogether. While fiber offers excellent immunity, signal line filters remain necessary when:
-
Power is required at the sensor or actuator
-
Legacy control systems are in use
-
Cost or system complexity must be minimized
-
Deterministic latency is required
In practice, many facilities adopt a hybrid approach, combining filtered copper lines with fiber-optic isolation where appropriate.
Embedded Video Reference
To better understand how signal line filters are integrated into real EMC chamber installations, you may find the following video useful:
🔗 [LinkedIn Video – Signal Line Filtering in EMC Chambers]
Conclusion
Signal line filters are an essential but often underestimated component of EMC chamber infrastructure. By properly filtering control and monitoring signals at the chamber boundary, test facilities can preserve shielding integrity, improve measurement stability, and ensure long-term compliance with EMC standards.
As EMC testing evolves toward higher frequencies and tighter limits, the role of well-designed signal filtering solutions will only become more critical.
