Sine Wave Filter
Sine Wave Filter
Motor protection, VFD output filter, Long cable drive
Technical Data:
- Voltage withstand test: 3000VAC/50Hz/5mA/10s without flashover breakdown (capacitor release)
- Carrier frequency: 2-8KHz
- Pressure drop: 8% -12%
- No load current: ≤ 8%
- Voltage harmonic distortion distortion THDu ≤ 5%
Product Description
The ND series sine wave filter products are used to improve the voltage waveform at the output end of the frequency converter, correct the PWM waveform output by the converter, convert it into a sine wave, extend the output distance of the frequency converter up to 3KM, effectively suppress high-frequency and dv/dt radio frequency interference, reduce output harmonic components, reduce eddy current losses and motor noise, extend the service life of the motor, and improve system reliability.
Without a sine wave filter, long-distance motor drives often suffer from insulation stress, overheating, and premature failure caused by steep voltage rises and switching harmonics. The sine wave filter smooths out these switching pulses, creating a nearly perfect sine waveform that allows for long cable runs and safe motor operation, even in harsh industrial conditions.
Compared to traditional output reactors or dv/dt filters, our sine wave filter offers broader frequency attenuation, lower total harmonic distortion, and superior thermal performance. It’s an ideal solution for applications requiring quiet motor performance, reduced maintenance, and extended equipment life in sectors such as HVAC, pumps, conveyors, and renewable energy systems.
Learn more in our latest blog:
“Why Sine Wave Filters Are Essential for Long-Distance Motor Drive Applications”
Typical Applications
In industrial motor drive systems, the sine wave filter reduces motor heating and extends lifespan by converting PWM waveforms into smooth sine waves.
For pump and fan control systems, the sine wave filter minimizes acoustic noise and protects motors from dv/dt stress during long-duration operation.
In elevator drive units, the sine wave filter ensures smooth acceleration and deceleration while preventing electromagnetic interference with nearby control electronics.
In HVAC systems, the sine wave filter enhances energy efficiency and extends compressor life by delivering clean power with reduced harmonic distortion.
For long cable installations, the sine wave filter enables stable motor control over distances up to 3KM, avoiding insulation failure and voltage reflection.
On automated production lines, sine wave filters improve drive reliability, reduce maintenance downtime, and ensure precise motor speed regulation.
In marine and shipboard power systems, the sine wave filter ensures EMI compliance and protects sensitive equipment in environments with long cable runs and harsh electrical noise.
Product Features
- Motor Protection
-
VFD Output Filter
-
Long Cable Drive
-
PWM to Sine
-
Smooth Motor Start
-
EMC Compliance
-
Noise Reduction
-
Low Harmonic Drive
-
High-Frequency Noise Suppression
Technical Data
- Voltage withstand test: 3000VAC/50Hz/5mA/10s without flashover breakdown (capacitor release)
- Carrier frequency: 2-8KHz
- Pressure drop: 8% -12%
- No load current: ≤ 8%
- Voltage harmonic distortion distortion THDu ≤ 5%
- All products are equipped with capacitor protection box
Circuit Diagrams
Currently, there is no circuit diagram available for Sine Wave Filter.
If you have any specific requirements or questions, please feel free to contact our customer service or technical support team — we are here to assist you.

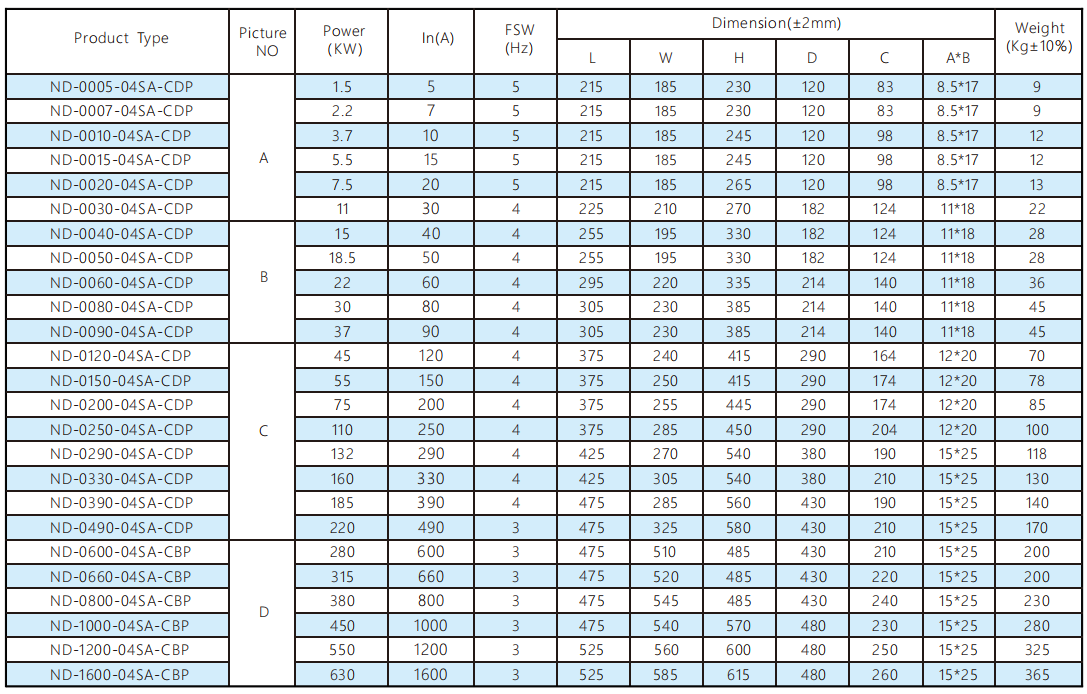

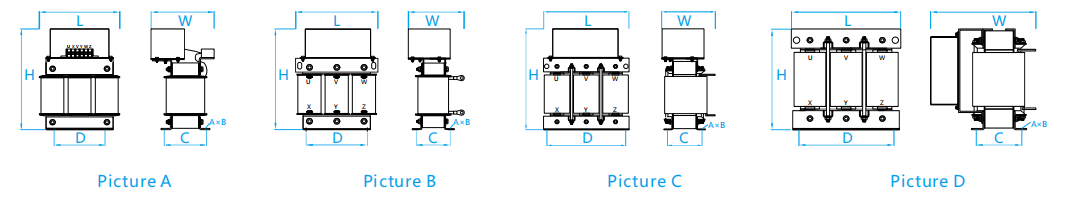

Outline Drawing (mm)
Insertion Loss
Insertion loss data for Sine Wave Filter is currently unavailable.
If you have specific performance requirements or would like to learn more, please don’t hesitate to get in touch — we’d be happy to help.
