Lighting systems are often underestimated components in EMC anechoic chambers. While their primary role is to provide sufficient illumination for operators, improperly designed LED lights can become unexpected sources of electromagnetic interference (EMI), directly compromising measurement accuracy and test repeatability.
As EMC test environments push toward higher sensitivity, wider frequency ranges, and stricter compliance requirements, lighting design must evolve from a basic facility concern into a carefully engineered subsystem. This article discusses the key design requirements for low-emission LED lighting used in EMC anechoic chambers and highlights the critical performance considerations necessary to ensure that lighting does not affect test results.
EMC Test Environment Requirements for Lighting Systems
An EMC anechoic chamber is designed to simulate a free-space electromagnetic environment while isolating external interference. Any auxiliary equipment installed inside the chamber must comply with the same low-emission philosophy as antennas, turntables, and monitoring systems.
For lighting systems, this translates into several fundamental requirements:
-
Extremely low conducted and radiated emissions
-
No measurable impact on chamber noise floor
-
Stable operation across long test durations
-
Compatibility with chamber shielding and grounding architecture
Unlike conventional industrial or office lighting, EMC chamber lighting cannot rely on standard commercial LED drivers or power architectures.
Why LED Lights Are Potential EMI Sources
Although LEDs themselves are passive semiconductor devices, modern LED lighting systems rely heavily on switch-mode power supplies (SMPS) for efficiency and brightness control. These power electronics are the primary sources of EMI.
Common EMI mechanisms in LED lighting include:
Switching Noise from LED Drivers
Typical LED drivers operate in the tens to hundreds of kilohertz range. Their fast switching edges generate broadband noise extending well into the MHz and GHz spectrum.
Conducted Emissions via Power Lines
Noise generated by the LED driver can propagate back through AC or DC supply lines, coupling into the chamber’s power distribution network.
Radiated Emissions from Cables and Fixtures
Unshielded cables, PCB traces, and even the LED housing itself can act as unintended antennas, radiating noise into the test volume.
In a sensitive EMC chamber, these emissions can elevate the ambient noise floor or introduce spurious signals that interfere with accurate measurements.
Core Design Requirements for Low-Emission LED Lighting
To ensure compatibility with EMC test environments, low-emission LED lights must meet a set of strict design criteria.
Related Technical Insight (Video)
To better illustrate how low-emission LED lighting is designed and evaluated in real EMC environments, the following short technical video provides a visual overview of key design considerations, including power architecture, EMI filtering, and integration inside shielded chambers.
Low-Noise Power Architecture
The most critical design element is the power supply.
Key considerations include:
-
Use of ultra-low-noise driver topologies
-
Reduced switching frequency or spread-spectrum techniques
-
Multi-stage filtering to suppress differential-mode and common-mode noise
In many cases, externalized or remotely located power supplies are preferred, keeping noise-generating electronics outside the chamber.
Integrated EMI Filtering
High-performance EMI filters are essential to prevent conducted noise from entering or leaving the lighting system.
Effective filtering strategies include:
-
Line-to-line and line-to-ground filtering
-
High-current ferrites and common-mode chokes
-
Proper filter placement close to noise sources
Filters must be designed specifically for the LED driver’s operating characteristics rather than adapted from generic power filters.
Shielded Mechanical Design
Mechanical structure plays a direct role in EMI control.
Low-emission LED lights typically feature:
-
Conductive metal housings with continuous electrical contact
-
Shielded internal compartments separating driver and LED modules
-
360-degree bonding to the chamber’s shielding panels
Any gaps, seams, or non-conductive coatings can significantly reduce shielding effectiveness.
Cable Routing and Interfaces
Cables are one of the most common radiation paths.
Best practices include:
-
Shielded power cables with proper termination
-
Minimizing cable length inside the chamber
-
Avoiding loops and uncontrolled routing paths
Interfaces penetrating the chamber wall should be treated as EMC-critical feedthroughs.
Ensuring No Impact on EMC Test Results
Even if a lighting system meets emission limits in isolation, its interaction with the chamber environment must be carefully validated.
Key performance considerations include:
-
Noise floor verification with lights on and off
-
Repeatability testing to ensure stable emissions over time
-
Frequency-domain analysis to detect harmonics or spurious peaks
Lighting should remain electromagnetically “invisible” across the full test frequency range.
Conclusion
Low-emission LED lighting is not a commodity product but a specialized subsystem in EMC anechoic chambers. Achieving reliable, interference-free illumination requires careful attention to power architecture, EMI filtering, mechanical shielding, and system integration.
Learn more in our latest blog:

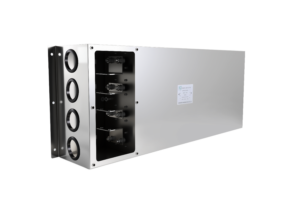

Where to Buy High-Current Power Line Filters for Shielded Rooms: Protect Your Sensitive Electronics Today
