Inverters are the backbone of many modern electrical systems, from renewable energy installations and industrial automation to electric vehicles and household electronics. They convert direct current (DC) into alternating current (AC) with specific voltage and frequency characteristics suitable for the application. However, the process of switching high currents at high frequencies inevitably generates unwanted electrical noise—known as electromagnetic interference (EMI)—that can impact both the inverter’s performance and the reliability of other nearby equipment.
An Input Power Line Filter is a critical yet often overlooked component that addresses these challenges. By reducing EMI and improving power quality at the inverter’s input, it ensures optimal performance, compliance with EMC standards, and longer service life for the overall system.
In this article, we’ll explore:
-
What an input power line filter does for an inverter
-
The types of disturbances it mitigates
-
Key benefits for system efficiency and reliability
-
Application scenarios where it becomes essential
-
Best practices for selecting the right filter
1. Understanding EMI in Inverters
Inverters rely on fast switching semiconductor devices—such as IGBTs or MOSFETs—to modulate power output. While these high-speed switching events are efficient for energy conversion, they also generate:
-
Differential-mode noise: Conducted noise between the line and neutral (or DC+ and DC-), caused by switching transients.
-
Common-mode noise: Noise between lines and ground, often due to parasitic capacitance in the inverter’s switching circuitry.
Both types of noise can propagate upstream into the power grid or affect sensitive electronics connected to the same supply. If left untreated, these disturbances can cause:
-
Malfunctions in nearby devices
-
Increased losses in the inverter and other equipment
-
Failure to meet EMC regulations, risking penalties or product recalls
2. The Role of an Input Power Line Filter
An Input Power Line Filter acts as a gatekeeper between the inverter and the power source. It is typically composed of:
-
Inductors (chokes): Impede high-frequency noise currents
-
Capacitors: Shunt unwanted noise to ground or across lines
-
Resistors/damping networks: Stabilize filter response and prevent resonance
Placed at the inverter’s input, the filter:
-
Suppresses conducted EMI before it enters the power grid
-
Protects the inverter’s internal components from upstream disturbances
-
Improves overall power quality by reducing harmonic distortion
3. Key Benefits of Using an Input Power Line Filter
3.1 EMI Compliance
Global EMC standards—such as CISPR 11/22, EN 55011, and FCC Part 15—limit conducted emissions from electrical devices. Without a proper input filter, most inverters would exceed these limits, making certification impossible.
3.2 Improved Reliability
High-frequency noise and voltage spikes can stress inverter components like capacitors, gate drivers, and control circuits. Filtering these disturbances prevents premature failures and reduces maintenance costs.
3.3 Enhanced Efficiency
Noise currents not only interfere with control electronics but also contribute to heating in cables and components. A well-designed filter minimizes these parasitic losses.
3.4 Better System Compatibility
In multi-device installations—such as solar farms, industrial plants, or ships—filters prevent cross-interference between equipment, ensuring stable and predictable operation.
4. Application Scenarios Where Input Filters Are Essential
4.1 Renewable Energy Systems
Solar and wind power inverters often operate in environments where grid compliance is mandatory. Filters ensure that renewable energy can be fed into the grid without exceeding harmonic limits.
4.2 Industrial Motor Drives
In heavy machinery or conveyor systems, EMI from inverters can disrupt programmable logic controllers (PLCs), sensors, and communication lines. Filters mitigate these issues.
4.3 Electric Vehicles and Marine Applications
Both EVs and ships rely on multiple power electronics devices working in parallel. Input filters ensure that charging systems, navigation equipment, and control modules remain unaffected by inverter noise.
4.4 Data Centers
In data center power systems, inverter noise could cause data corruption or equipment resets. Input filters are crucial to maintain uptime and prevent service interruptions.
5. Selecting the Right Input Power Line Filter
When choosing an input filter for your inverter, consider:
5.1 Voltage and Current Ratings
Ensure the filter can handle your system’s nominal and peak operating conditions.
5.2 Insertion Loss Performance
Evaluate how effectively the filter attenuates differential-mode and common-mode noise over the required frequency range.
5.3 Environmental Conditions
For harsh environments—such as offshore platforms or dusty factories—choose filters with robust enclosures and appropriate IP ratings.
5.4 Compliance and Certification
Select filters tested and certified to relevant EMC standards to streamline system approval.
5.5 Physical Size and Installation
Ensure the filter fits within your enclosure and can be mounted without compromising cooling or serviceability.
6. Best Practices for Implementation
-
Short lead lengths: Keep connections between the filter and inverter as short as possible to minimize radiated EMI pickup.
-
Proper grounding: Ensure low-impedance grounding for safety and effective common-mode noise suppression.
-
Shielded cables: Combine filtering with shielded cables in high-noise environments.
-
Regular inspection: Periodically check filters for capacitor degradation or inductor overheating, especially in high-duty-cycle applications.
Conclusion
An inverter without an Input Power Line Filter is like a concert without sound engineers—technically functional, but prone to noise and interference. By incorporating the right filter at the inverter’s input, you can achieve:
-
Compliance with global EMC standards
-
Improved operational reliability
-
Better compatibility with other system components
-
Longer service life and reduced downtime
Whether you’re designing a renewable energy plant, upgrading an industrial automation line, or building next-generation electric vehicles, investing in high-quality input filters is a small step with massive long-term benefits.

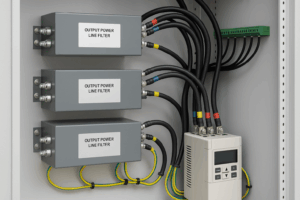

For more information: [How Output Power Line Filters Enhance Inverter and Motor Reliability]
