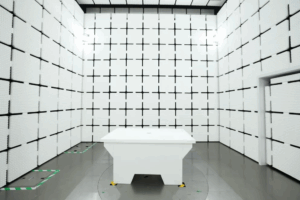

Selecting the right filters for EMC anechoic chambers is a multi-dimensional decision. It needs to consider electrical ratings, attenuation profiles, signal fidelity, and shielding integrity. This guide simplifies the selection process and provides practical tips for engineers and laboratory managers preparing a new chamber or upgrading an existing facility.
Step 1 — Define Your Chamber’s Filtering Requirements
Begin by answering these questions:
-
What tests will the chamber support (radiated emissions, radiated immunity, conducted immunity, conducted emissions)?
-
What frequency bands and dynamic ranges matter most?
-
What equipment (DUTs) and their power profiles will you test?
-
Are there medical or safety constraints (low leakage)?
Your answers define the necessary filter types and performance metrics.
Step 2 — Power Filters: Bulkhead & Panel Feedthroughs
Key considerations:
-
Current & Voltage Ratings: Ensure continuous and surge capability to match test equipment.
-
Attenuation Performance: For conducted tests, target filters specified with insertion loss curves across 150 kHz–30 MHz and up to higher frequencies if needed.
-
Leakage Current: For patient-connected or precision systems, choose low-leakage units.
-
Mechanical Mounting: Choose feedthroughs that provide gas-tight conductive contact with chamber walls.
When to choose: Use bulkhead feedthrough power filters whenever the power cable penetrates the chamber wall and shielding continuity must be preserved.
Step 3 — Signal-Line Filters & Data Interfaces
Common options:
-
Filtered RJ45 / Ethernet Feedthroughs for test setups requiring network connectivity while avoiding ground loops.
-
Filtered Coax Feedthroughs with 50Ω impedance control for RF paths.
-
USB/Serial/Analog Filter Modules for instrumentation lines.
-
Fiber Optic Feedthroughs when total isolation is required.
Important: Match impedance and data rates. High-speed digital lines require filters with predictable insertion loss and minimal skew.
Step 4 — Multi-Line & Modular Solutions
For chambers with many connections, modular multi-line filtered panels help keep wiring tidy while maintaining shielding. These panels can combine power, signal, and control lines in a single bulkhead plate with individual filter channels.
Step 5 — Integration: Grounding, Bonding, and Cable Routing
Proper integration is as important as filter specs:
-
360° ground contact between feedthrough body and chamber wall is mandatory.
-
Star grounding or well-planned ground meshes avoid circulating currents that cause common-mode noise.
-
Cable routing: Avoid routing unfiltered and filtered cables in parallel; separate power and data bundles.
Step 6 — Testing & Verification
After installation, perform:
-
Shielding Effectiveness (SE) testing across relevant bands.
-
Insertion loss verification of feedthrough filters.
-
Immunity/emissions checks using the exact test setups expected in day-to-day use.
Document results and set a maintenance schedule for periodic re-checks—especially for gaskets and feedthrough contacts.
Step 7 — Practical Procurement Advice
-
Request insertion loss plots from vendors and compare actual measured curves, not just specs.
-
Require mechanical drawings for bulkhead mounting and build clearances into chamber design.
-
Discuss lead times for custom or high-current feedthroughs (these often have longer lead times).
-
Ask about repair/replacement parts (gaskets, plated surfaces, connectors).
Quick Selection Table (cheat sheet)
| Requirement | Recommendation |
|---|---|
| High-current vehicle/EV testing | Bulkhead power feedthrough filters (high surge rating) |
| Sensitive medical DUTs | Low-leakage power feedthrough + fiber data pass-through |
| Many signal lines | Modular multi-line filtered panel |
| High-frequency RF signal | Filtered coax feedthrough with 50Ω integrity |
| Thermal/ventilation needed | Combine honeycomb vents + feedthrough filters |
FAQ
Q: Can I retrofit filters into an existing chamber?
A: Yes. Retrofitting feedthrough filters is common but ensure conductive bulkhead modifications and re-qualification testing are performed.
Q: Do feedthrough filters affect power quality inside the chamber?
A: Properly specified filters have minimal impact on service voltage but will add capacitance and may affect inrush currents—check manufacturer data.
Q: Are there off-the-shelf solutions for most chambers?
A: Many vendors offer standard modules; however, complex labs often require custom feedthroughs to match current, connector, and leakage specs.
