Selecting a Power Line Filter for Inverter applications may look simple.
Match the voltage.
Match the current.
Check the dimensions.
Place the order.
In reality, this approach often overlooks the most important part of inverter filter selection: the actual operating conditions of the drive system.
Do not choose a Power Line Filter for Inverter based only on rated current.
Do not assume the most powerful filter is automatically the most suitable one.
1. Start With the Electrical Configuration
Before selecting a filter, the basic electrical requirements need to be clear.
Important parameters include:
- Rated voltage
- Rated current
- Single-phase or three-phase system
- 50 Hz or 60 Hz operation
- Input-side or output-side installation
Noordin’s inverter filter range includes solutions for different configurations, including three-phase input filters and output filters, with current ratings extending across a broad industrial range.
2. Don’t Choose Based on Current Alone
Current is one of the most visible specifications when purchasing an inverter filter.
But it is not the only one.
A suitable Power Line Filter for Inverter should also be evaluated according to:
- Required attenuation
- Frequency range
- Common-mode performance
- Differential-mode performance
- Leakage current
- Installation environment
A filter that matches the current but does not address the actual EMC problem may provide limited value.
3. Don’t Ignore Whether You Need an Input or Output Filter
This is another common purchasing mistake.
An Input Power Line Filter for Inverter and an Output Power Line Filter for Inverter are designed for different positions within the system.
The correct choice depends on the purpose of the filtering and the location of the unwanted interference.
Do not simply purchase a filter because it is described as an “inverter filter.”
Confirm exactly where it will be installed and what problem it is expected to solve.
4. Don’t Over-Specify the Filter
Higher attenuation is not always better.
An unnecessarily oversized filter can increase:
- Purchase cost
- Installation space
- Weight
- Leakage current
- System complexity
The objective should be to achieve the required EMC performance with an appropriately engineered solution.
Not maximum specifications at any cost.
5. Consider Customization for Industrial Applications
Industrial inverter systems can vary significantly.
Applications may include:
- Motor drives
- HVAC systems
- Elevators
- Industrial automation
- Pumps
- Conveyor systems
- Production equipment
Standard products may be suitable for many applications, but specialized systems may require a customized solution.
This is where working with an experienced EMI filter manufacturer can make a difference.

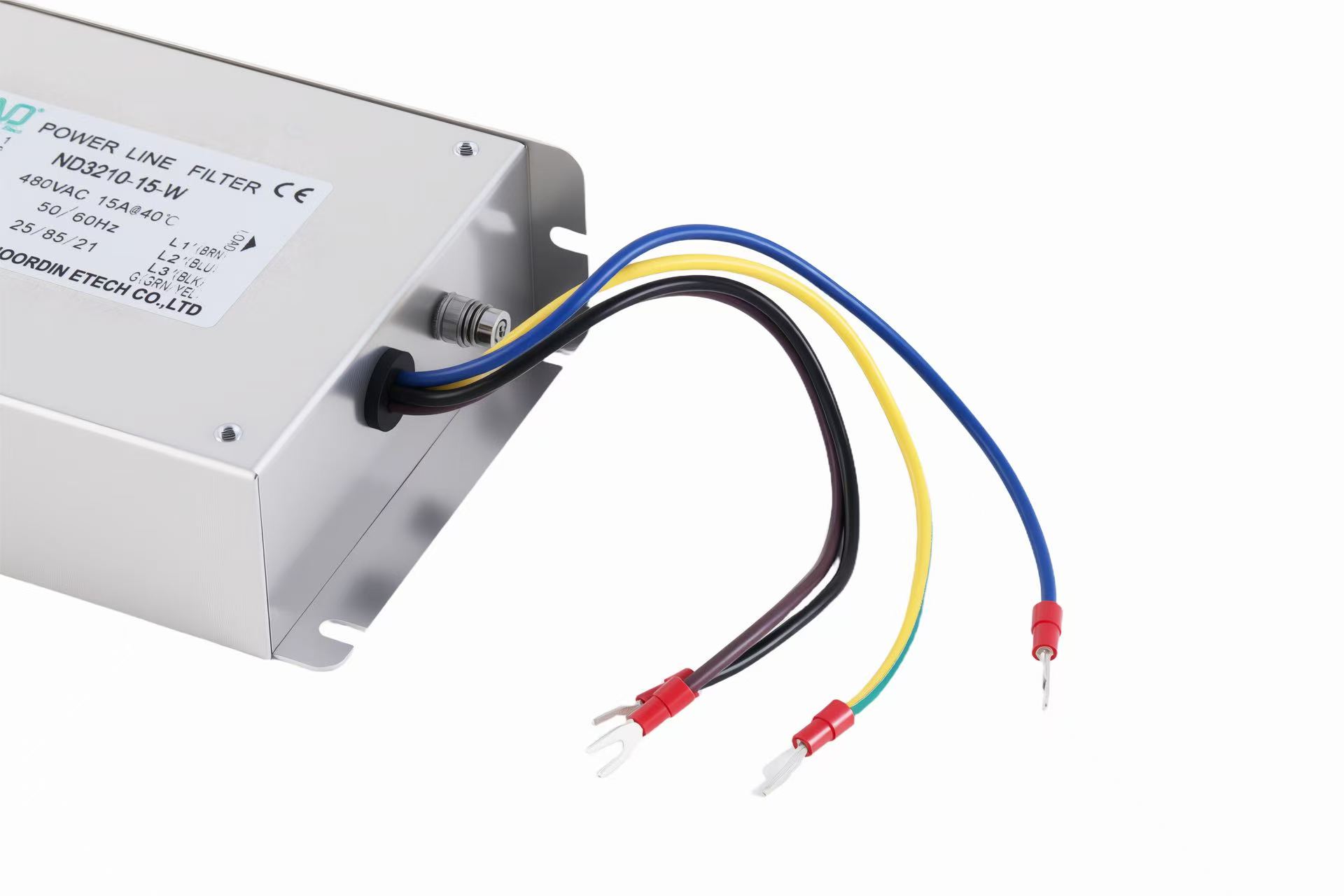

Noordin Etech provides Power Line Filters for Inverter applications, including input and output filtering solutions for industrial systems.
Explore Noordin’s Power Line Filters for Inverter:
Power Line Filters for Inverter | Noordin Etech
Conclusion
The right Power Line Filter for Inverter is not necessarily the one with the highest current rating or the highest attenuation.
A better selection balances:
- Voltage
- Current
- Input or output position
- EMC performance
- Noise characteristics
- Installation requirements
- Long-term reliability
Do not buy an inverter filter simply because the numbers appear to match.
First understand the system.
Then select the filter that matches the actual engineering requirements.
