Introduction: Why an Electrical Noise Filter Is Essential in Modern Electronics

An electrical noise filter is one of the most critical yet overlooked components in today’s electronic and industrial power systems. As devices become faster, more compact, and more sensitive, the levels of conducted and radiated noise produced by switching circuits, power electronics, and external electromagnetic sources continue to rise. Without a proper electrical noise filter, these disturbances can cause system instability, inaccurate sensor readings, overheating, equipment malfunction, or even complete operational failure.

From household appliances to medical equipment, from industrial automation lines to electric vehicles, nearly every system relies on an electrical noise filter to maintain stable performance and comply with regulatory EMC requirements. This article provides an in-depth look at how an electrical noise filter works, the types available, and why it should be a standard part of every design.

What Is an Electrical Noise Filter?

An electrical noise filter is a device designed to suppress unwanted electromagnetic noise generated within a system or entering from external sources. It ensures that the system operates reliably by controlling high-frequency interference on the power lines.

Electrical noise filters can:

Prevent internal noise from interfering with other devices
Protect sensitive circuits from external EMI pollution
Ensure compliance with EMC standards such as IEC 61000-6-2 / 6-4, CISPR 11, or MIL-STD-461
Improve long-term reliability and reduce maintenance issues

In power electronics, the electrical noise filter is typically the first line of defense against high-frequency interference.

How an Electrical Noise Filter Works

An electrical noise filter works by using a combination of passive components—inductors, capacitors, and sometimes resistors—to block or attenuate unwanted high-frequency noise while allowing the 50/60 Hz power signal to pass through unaffected.

✔ Differential Mode Noise Suppression

This type of noise appears between phase lines. The electrical noise filter uses “X-capacitors” and differential inductors to attenuate it.

✔ Common Mode Noise Suppression

Common mode noise travels simultaneously on all lines relative to ground. The electrical noise filter uses “Y-capacitors” and common-mode chokes to block paths for this noise.

In a properly designed system, both noise types must be addressed simultaneously for stable EMC performance.

Types of Electrical Noise Filters

Electrical noise filters come in many forms depending on system requirements.

1. Single-Phase Electrical Noise Filter

Used in small appliances, test instruments, chargers, consumer electronics, and low-power equipment.

2. Three-Phase Electrical Noise Filter

Used in industrial automation, CNC machines, compressors, UPS systems, and heavy-duty power electronics.

3. DC Electrical Noise Filter

Used in photovoltaic systems, battery storage (ESS), DC/DC converters, EV chargers, and automotive subsystems.

4. Custom Electrical Noise Filter

When the system requires a specific attenuation curve, temperature limit, leakage current spec, or footprint constraint—custom EMC filters become essential.

Why Every System Needs an Electrical Noise Filter

1. To Meet EMC Compliance

Regulators worldwide enforce EMC limits. Without an electrical noise filter, most switching power systems fail conducted emission tests.

2. To Prevent Device Malfunction

Noise can cause:

Processor resets
Sensor misreadings
Touch panel errors
Communication dropouts
An electrical noise filter stabilizes power and eliminates these issues.

3. To Protect Components from Premature Failure

High-frequency interference causes additional thermal stress on semiconductors and capacitors. Filtering reduces stress and extends service life.

4. To Improve Signal Integrity

Critical in communication lines, medical systems, measurement instruments, and RF-sensitive equipment.

5. To Reduce System Downtime

In industrial environments, noise-related faults can lead to costly production stops. An electrical noise filter prevents unexpected shutdowns.

Where Electrical Noise Filters Are Used (Top Applications)

Electrical noise filters are indispensable in:

• Industrial Automation

VFDs, servo motors, PLC systems, CNC controllers, robots.

• Renewable Energy

PV inverters, on-grid/off-grid systems, wind converters, ESS battery systems.

• Medical Devices

Imaging systems, diagnostic equipment, infusion pumps, laboratory analyzers.

• IT & Telecom

Base stations, routers, edge servers, data centers.

• Household and Commercial Electronics

Air conditioners, washing machines, UPS units, chargers.

• Electric Vehicles

On-board chargers, DC/DC converters, battery control units.

Key Considerations When Choosing an Electrical Noise Filter

Choosing the right electrical noise filter requires evaluating the following:

1. Voltage and Current Rating

Select a filter rated above the system’s nominal power to ensure long-term reliability.

2. Target Attenuation Curve

Match the attenuation profile with the system’s EMI signature.

3. Leakage Current Requirements

Medical and EV charging systems often require low-leakage designs.

4. Installation Position

Proximity to noise sources affects the filter’s effectiveness.

5. Environmental and Thermal Conditions

Derating may be required for high-temperature or high-altitude installations.

Best Practices for Installing an Electrical Noise Filter

To maximize performance:

Install the filter as close as possible to the noise source
Keep input and output cables separated to avoid EMI coupling
Ensure proper grounding for effective common-mode suppression
Use shielded cables in high-interference environments
Avoid routing power lines near sensitive signal lines

Correct installation can improve attenuation by more than 20–30 dB.

Conclusion

An electrical noise filter is a critical component for ensuring stability, safety, and EMC compliance in modern electronic systems. Whether in industrial automation, renewable energy, medical electronics, or mobility applications, electrical noise filters prevent interference, protect equipment, and improve reliability. For any system involving switching power electronics or sensitive measurements, integrating the correct electrical noise filter is no longer optional—it is essential.

Learn more in our latest blog:

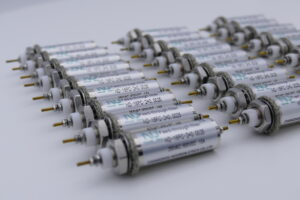

Feedthrough Filter for High-Performance EMC Chambers and Shielded Enclosures
