A shielded room is designed to reduce unwanted electromagnetic interference (EMI), but a well-built shielding enclosure does not automatically guarantee a quiet electrical environment. Power cables crossing the shielding boundary can become a path for conducted interference if the power entry system is not designed correctly.
This is why a Power Line Filter for Shielded Room applications should be considered part of the overall shielding system—not simply an accessory installed after construction.
1. Don’t Assume a High-Performance Shielding Wall Solves Every EMI Problem
A shielded room may have conductive walls, carefully treated joints, and a properly designed door. However, electrical power must still enter the room to supply lighting, test instruments, computers, and other equipment.
Without suitable filtering, unwanted high-frequency noise may travel along power conductors and enter or leave the enclosure. The shielding wall alone cannot eliminate every conducted interference path.

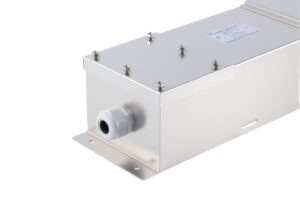

A Shielded Room Power Line Filter helps suppress unwanted noise on power lines while allowing the required electrical power to pass through. Its performance should be considered alongside the room’s shielding effectiveness and the electromagnetic environment of the application.
2. Don’t Treat the Power Filter as an Isolated Component
A common design mistake is to evaluate the power line filter separately from the shielding enclosure.
In practice, the filter must work as part of the complete power-entry arrangement. Installation location, electrical connections, grounding and bonding, and the way cables enter the room can all affect the result.
For example, a suitable filter may not deliver the expected system-level performance if its installation does not maintain the intended shielding boundary. Filter selection and installation planning should therefore be coordinated with the shielding-room design.
3. Don’t Compare Filters by One Attenuation Number Alone
Insertion loss is an important parameter when evaluating an EMI Filter for Shielded Room applications, but a single number does not describe performance across every frequency.
Before selecting a filter, review the frequency range over which the specified attenuation applies. Also confirm the rated voltage, current capacity, phase configuration, and other electrical requirements.
Noordin’s shielded-room power line filter range includes products with different configurations and performance characteristics. Published product information describes insertion-loss performance above 100 dB for specified configurations and frequency ranges; the applicable data should be checked against the exact model and test conditions.
4. Don’t Ignore the Equipment Connected to the Filter
The electrical loads inside a shielded room can vary considerably. Precision measurement instruments, computers, lighting, motors, and other equipment may have different operating currents and electrical characteristics.
A filter should be selected according to the actual load and power-distribution design. In addition to normal operating current, engineers should consider startup conditions, future equipment expansion, leakage current, and voltage drop where relevant.
The goal is not simply to install the largest filter available. It is to select a filter that meets the application’s electrical and electromagnetic requirements.
5. Don’t Separate Filtering from Shielding-System Verification
If a shielded room fails to achieve the expected EMI performance, the cause may not be the wall material or the filter alone. The power entry, grounding, cable routing, doors, ventilation openings, and other penetrations may all need to be reviewed.
A systematic approach evaluates the complete shielding system and verifies performance against the project’s requirements.
For a closer look at Noordin’s power line filtering solutions for shielded environments, watch our technical video on LinkedIn:
Conclusion
Don’t assume that a shielded room is electromagnetically complete simply because its walls provide high shielding effectiveness. Power lines are part of the shielding boundary, and their filtering arrangements deserve the same engineering attention as other penetrations.
A correctly selected and installed Power Line Filter for Shielded Room applications can help control conducted EMI and support reliable operation in EMC laboratories, research facilities, and other sensitive environments.
