Delving into RFI Shielding: How It Differs from EMI Protection

Electromagnetic interference (EMI) and radio frequency interference (RFI) are common challenges in today’s interconnected and electronics-driven world. Both phenomena can degrade performance, shorten equipment lifespan, and cause compliance issues. However, while often used interchangeably, RFI shielding and EMI protection target distinct aspects of interference. Understanding the differences between them is critical for engineers and system designers seeking reliable solutions for sensitive electronic systems.

This article explores what RFI shielding entails, how it differs from EMI protection, and why distinguishing the two is essential for high-performance design.

What Is EMI?

Electromagnetic interference (EMI) refers to unwanted disturbances in an electrical circuit caused by external electromagnetic fields. These disturbances can stem from natural sources (such as lightning or solar activity) or human-made devices (like switching power supplies, motors, or wireless transmitters).

EMI can affect equipment across a broad frequency spectrum, ranging from very low frequencies (VLF) to microwave bands. This interference manifests as degraded signal integrity, overheating components, or complete functional failures. Because it can originate from so many sources, EMI protection requires a comprehensive approach—including grounding, filtering, and shielding.

What Is RFI?

Radio frequency interference (RFI) is a subset of EMI that specifically refers to interference in the radio frequency spectrum. Typically, this covers frequencies from 10 kHz up to 10 GHz, which includes AM/FM radio, cellular communications, Wi-Fi, GPS, and other wireless technologies.

RFI tends to be particularly problematic in systems that rely on wireless communication or operate in crowded frequency environments. Unlike low-frequency EMI, which may impact power delivery or cause mechanical hum, RFI often shows up as:

• Distorted or dropped wireless communication

• Crosstalk between adjacent circuits

• Reduced data transmission speeds

• Signal loss in critical systems such as aviation or medical devices

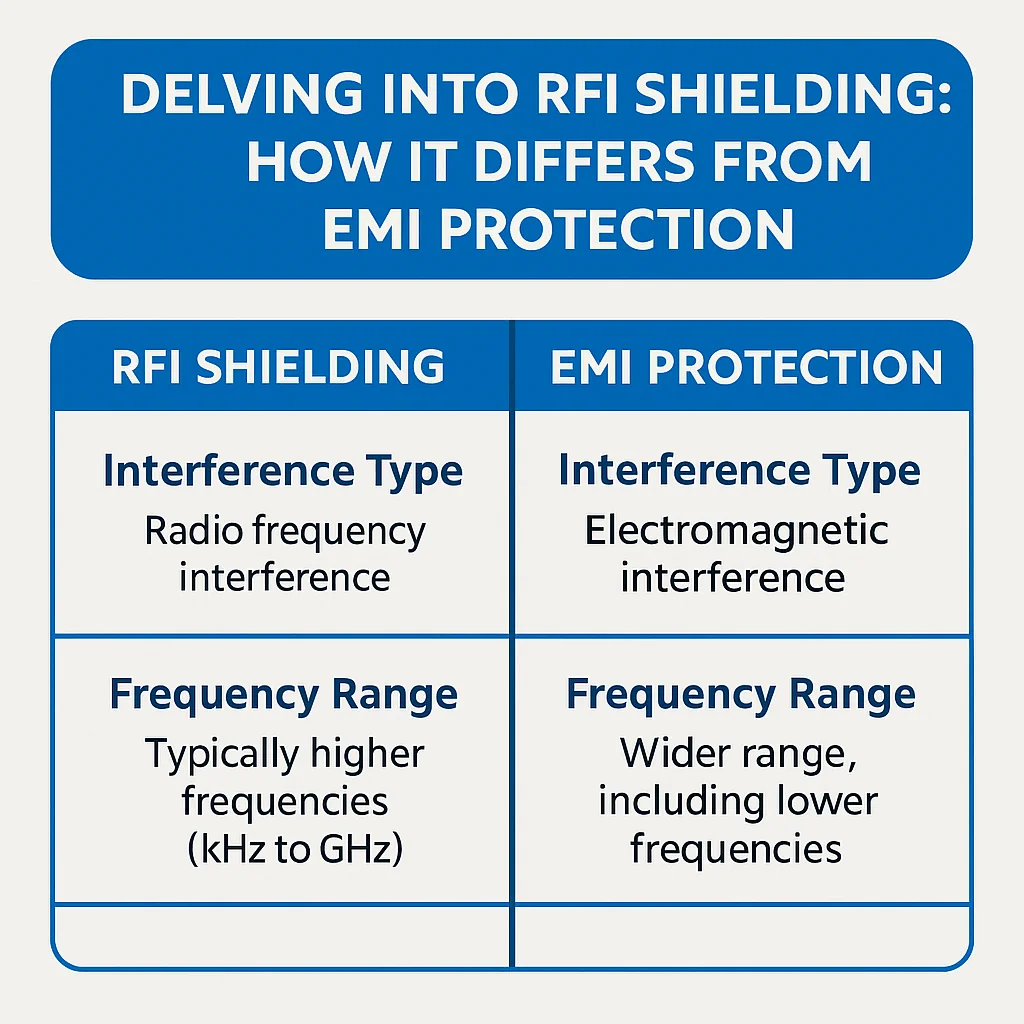

RFI Shielding vs. EMI Protection

Although the terms “EMI shielding” and “RFI shielding” are sometimes used interchangeably, there are important distinctions.

1. Frequency Range

• EMI Protection: Broad-spectrum, covering both low and high frequencies.

• RFI Shielding: Focused on higher-frequency electromagnetic waves, usually in the radio spectrum.

2. Techniques Involved

• EMI Protection: May involve grounding strategies, power line filters, ferrite cores, and conductive gaskets.

• RFI Shielding: Primarily involves enclosures and conductive barriers designed to block high-frequency waves from penetrating. Materials like copper, aluminum, and conductive fabrics are common.

3. Applications

• EMI Protection: General-purpose—used in industrial machinery, power electronics, automotive systems, and consumer electronics.

• RFI Shielding: Targeted—used in communication equipment, medical instruments, aerospace electronics, and data centers.

Why RFI Shielding Matters

The rise of wireless connectivity means that RFI challenges are becoming more prominent than ever. Even a small amount of RFI can compromise the reliability of modern systems:

1. Medical Devices
   Pacemakers, hearing aids, and monitoring equipment can malfunction due to strong RF fields. Shielding ensures patient safety and uninterrupted operation.

2. Aerospace and Defense
   Communication systems, radar, and avionics must remain immune to hostile or environmental RF signals. Specialized RFI shielding materials are often mandated.

3. Consumer Electronics
   Smartphones, tablets, and IoT devices rely heavily on clean radio channels. Without RFI shielding, these devices may experience degraded call quality or connectivity failures.

4. Industrial Automation
   Factories are full of RF-emitting devices—shielding prevents wireless controllers and sensors from cross-interfering.

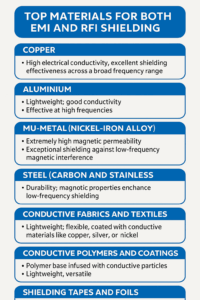

Common Materials and Techniques for RFI Shielding

RFI shielding typically relies on conductive or magnetic materials that reflect or absorb unwanted RF energy. Some widely used solutions include:

• Copper Foil and Mesh – High conductivity and effective across wide RF ranges.

• Aluminum Enclosures – Lightweight and widely used in aerospace and electronics housings.

• Conductive Fabrics – Flexible and ideal for wearable devices or irregular surfaces.

• Honeycomb Vent Panels – Provide airflow while blocking RF energy.

• Shielded Cables – Prevent radiated emissions and susceptibility along transmission lines.

The effectiveness of RFI shielding depends on material selection, thickness, seams, grounding, and installation technique. Even the smallest gap or improper grounding can compromise shielding effectiveness.

Integrating RFI and EMI Solutions

Because RFI is a subset of EMI, system designers must balance broad EMI protection with focused RFI shielding. A comprehensive strategy may include:

• Wire-lead or PCB-mounted EMI filters for power and signal lines.

• Busbar or feedthrough filters for high-power applications.

• Conductive gaskets and coatings for enclosure-level shielding.

• RF-specific enclosures to isolate sensitive circuits.

This layered approach ensures that both low-frequency EMI and high-frequency RFI are mitigated, delivering maximum system reliability.

Conclusion

While EMI protection and RFI shielding are closely related, they are not identical. EMI covers a broad frequency range and involves multiple mitigation strategies, whereas RFI shielding specifically addresses disturbances within the radio frequency spectrum.

By understanding the nuances and applying the right techniques, engineers can ensure robust performance in communication systems, medical devices, industrial automation, and consumer electronics.
