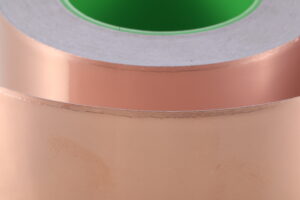

Copper foil tape is one of the most widely used materials for EMI shielding in electronic assemblies, enclosures, and cable management. Its popularity comes from excellent electrical conductivity, mechanical flexibility, and ease of installation.
However, despite its apparent simplicity, copper foil tape performance depends heavily on material properties, adhesive characteristics, and grounding practices. Improper selection or installation can significantly reduce its shielding effectiveness.
This article explores the key technical factors engineers should understand when using copper foil tape for EMI shielding.
Why Copper Foil Tape Is Effective for EMI Shielding
Copper offers high electrical conductivity, allowing electromagnetic energy to be reflected and redirected away from sensitive circuits. When properly bonded and grounded, copper foil tape provides a low-impedance path that helps:
-
Reduce radiated emissions
-
Improve shielding continuity across seams and joints
-
Suppress coupling between adjacent components
Copper foil tape is often used as a supplementary shielding element, rather than a standalone shield.
Key Electrical Properties
Conductivity and Thickness
Copper foil thickness directly affects shielding performance and mechanical durability.
Common considerations include:
-
Thinner foils: better flexibility, easier installation
-
Thicker foils: lower resistance, improved durability
For most EMC applications, conductivity and bonding quality matter more than excessive thickness.
Surface Resistance
Low surface resistance ensures efficient current flow and minimizes voltage drops along seams. Oxidation or poor surface finish can increase resistance over time, especially in humid or industrial environments.
Adhesive Types and Their EMC Impact
The adhesive layer is often overlooked but is critical for EMC performance.
Conductive Adhesive
-
Allows electrical continuity through the adhesive layer
-
Ideal for grounding and seam shielding
-
Reduces the need for mechanical fasteners
Non-Conductive Adhesive
-
Requires overlapping or external grounding
-
Common in low-cost or non-critical applications
-
Can compromise shielding if not properly bonded
Choosing the correct adhesive type is essential for consistent EMI performance.
Grounding and Installation Considerations
Copper foil tape only works effectively when properly grounded.
Best practices include:
-
Ensuring metal-to-metal contact with the enclosure
-
Avoiding gaps, wrinkles, or loose edges
-
Cleaning surfaces before application
-
Minimizing oxidation at contact points
Poor grounding often results in shielding that looks correct mechanically but performs poorly electrically.
Typical Applications
Copper foil tape is commonly used in:
-
Shielded enclosures and cabinets
-
Cable shielding and termination
-
PCB-level EMI mitigation
-
Seam and joint sealing
In many systems, it acts as a critical link in the overall EMC strategy.
Industry Discussion and Practical Experience
Many real-world challenges related to copper foil tape—such as adhesive aging, grounding reliability, and field repairs—are actively discussed by EMC engineers.
📌 Related engineering discussions and application insights are frequently shared on LinkedIn
Conclusion
Copper foil tape is a powerful and versatile EMI shielding material when selected and applied correctly. Understanding electrical properties, adhesive behavior, and grounding requirements is essential for achieving reliable and repeatable EMC performance.
