In the world of electromagnetic compatibility (EMC), filtering noise is essential for maintaining signal integrity and preventing malfunction in sensitive electronics. Two fundamental types of filters—common mode filters and differential mode filters—play distinct roles in mitigating electromagnetic interference (EMI). Understanding their differences is key to designing effective EMI suppression strategies, especially when high-performance or mission-critical equipment is involved. This article explores how these filters work, their applications, and how they relate to broader electromagnetic protection technologies such as EMP filters.
What Is Electrical Noise?
Before diving into the filters themselves, it’s important to grasp what we’re trying to eliminate: electrical noise. Electrical noise refers to unwanted signals that interfere with the operation of a device. It can enter systems through power lines, signal cables, or radiation from nearby devices.

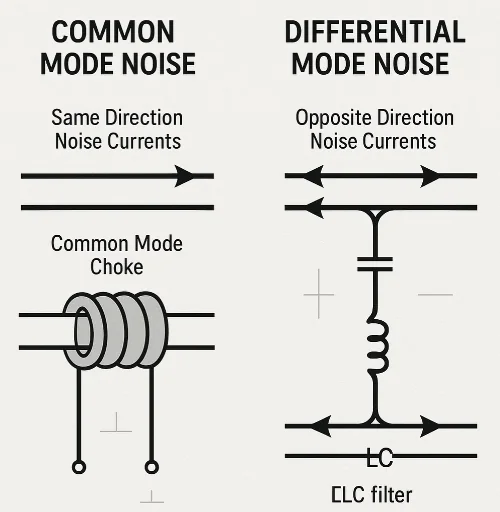

Noise can travel in two main ways:
-
Differential Mode (DM) Noise: Appears between two conductors carrying opposite currents, such as the positive and negative lines in a DC circuit.
-
Common Mode (CM) Noise: Appears in the same direction on both conductors relative to ground.
Each type of noise behaves differently and requires a tailored filtering solution.
What Is a Common Mode Filter?
A common mode filter targets common mode noise—interference that appears identically on multiple lines and returns via a ground path. This type of noise is often caused by external electromagnetic fields, such as radio frequency interference (RFI), or by internal switching power supplies and motors.
How Common Mode Filters Work
Common mode filters often consist of common mode chokes, which use a ferrite core with windings that carry current in opposite directions. For differential (normal) signals, the magnetic fields cancel out and allow the signal to pass freely. For common mode signals (which flow in the same direction on both lines), the magnetic fields reinforce each other, generating a high impedance and attenuating the noise.
Key Applications
-
USB and Ethernet ports
-
Power supply inputs
-
Signal and data lines
-
Industrial machinery and medical equipment
Advantages of Common Mode Filters
-
Effective against radiated EMI
-
Compact and reliable
-
Can be used in both AC and DC circuits
What Is a Differential Mode Filter?
A differential mode filter targets differential noise, which occurs between two conductors carrying opposite currents. This type of interference is typically generated by high-speed switching, such as in DC/DC converters or switching power supplies.
How Differential Mode Filters Work
Differential mode filters are usually made up of LC circuits (inductors and capacitors). The inductor impedes the high-frequency noise while allowing low-frequency or DC signals to pass. Capacitors are often used to divert noise to ground or across the conductors to neutralize it.
Key Applications
-
Power electronics (inverters, converters)
-
Battery management systems
-
LED drivers
-
Electric vehicle charging systems
Advantages of Differential Mode Filters
-
Precise attenuation of specific frequencies
-
Essential for power quality improvement
-
Widely used in DC and low-frequency AC systems
Key Differences Between Common Mode and Differential Mode Filters
| Feature | Common Mode Filter | Differential Mode Filter |
|---|---|---|
| Noise Type | Common mode noise | Differential mode noise |
| Current Flow Direction | Same direction on both conductors | Opposite direction between two conductors |
| Main Component | Common mode choke | Inductors and capacitors (LC network) |
| Applications | Data lines, power lines, I/O ports | DC/DC converters, AC input/output filtering |
| Goal | Suppress noise relative to ground | Suppress noise between power conductors |
| Use in EMP Filtering | Often integrated in HEMP filter front-end | Key in maintaining signal integrity post-EMP |
Where Do EMP Filters Fit In?
When discussing common and differential mode noise suppression, it’s crucial to address a higher-stakes scenario—Electromagnetic Pulse (EMP) events. EMP filters are advanced filters designed to protect equipment from high-energy, short-duration surges that resemble massive spikes of common and differential mode noise.
EMP Filters: A Specialized Integration
An EMP filter often combines both common mode and differential mode suppression within a single housing to withstand extreme events such as:
-
HEMP (High-Altitude Electromagnetic Pulse): From nuclear detonations.
-
NEMP (Nuclear EMP): Close-proximity bursts with localized effects.
-
Non-nuclear EMP: Directed-energy weapons or intentional EMI (IEMI) attacks.
EMP filters are built to be fast-reacting, high-durability, and standards-compliant (e.g., MIL-STD-188-125, IEC 61000-4-24), and they often include surge protection, grounding systems, and filtering stages tailored for both CM and DM interference.
Combined Use in Real-World Systems
Modern electronic systems, especially those used in defense, aerospace, and critical infrastructure, cannot afford downtime or damage due to EMI or EMP events. As a result, engineers often design systems with both common mode and differential mode filters installed in series.
For example:
-
In a solar inverter, differential filters may manage high-frequency switching noise, while common mode filters block grid-related interference or radiated emissions.
-
In a military communication shelter, EMP filters integrate both noise types and add surge suppression to ensure uninterrupted operation after a pulse event.
Choosing the Right Filter
Selecting between common mode and differential mode filters—or determining the appropriate combination—depends on several factors:
-
Type of noise: Measured through EMI testing.
-
Operating environment: Industrial, military, medical, or residential.
-
Voltage/current levels: Filters must match system ratings.
-
Compliance needs: Certain industries require certified filtering.
-
EMP protection: In high-risk environments, use EMP-rated filters.
Engineering Considerations
When designing with filters, engineers should also take into account:
-
Impedance matching
-
Thermal performance
-
Insertion loss over frequency range
-
Size constraints
-
Cost vs. protection level
Improper or mismatched filters can not only reduce effectiveness but also create new problems such as signal distortion or reduced efficiency.
EMP Filter Spotlight
An EMP filter, particularly one designed for DC or AC power lines, is typically composed of:
-
Common mode chokes: To block symmetrical pulse noise.
-
Differential mode inductors: To dampen asymmetric surges.
-
Capacitors: For high-frequency attenuation.
-
Transient voltage suppression (TVS): For surge handling.
These filters protect vital systems such as:
-
Radar and control stations
-
Emergency communication centers
-
Power grid substations
-
Critical medical devices
Final Thoughts
Understanding the difference between common mode and differential mode filters is essential for effective EMI suppression. These filters are fundamental to electronic system reliability—and when combined with EMP filters, they offer comprehensive protection in both everyday and extreme environments.
For more information, please refer to our article <HEMP Filter VS EMI Filter>
