When engineers compare EMC absorbers, the conversation often starts with thickness.
But thickness alone rarely determines performance.
The real differentiator is absorber structure.
Different absorber geometries interact with electromagnetic waves in fundamentally different ways, influencing reflection levels, bandwidth, and installation requirements.
Here are four common absorber structures and where each performs best.

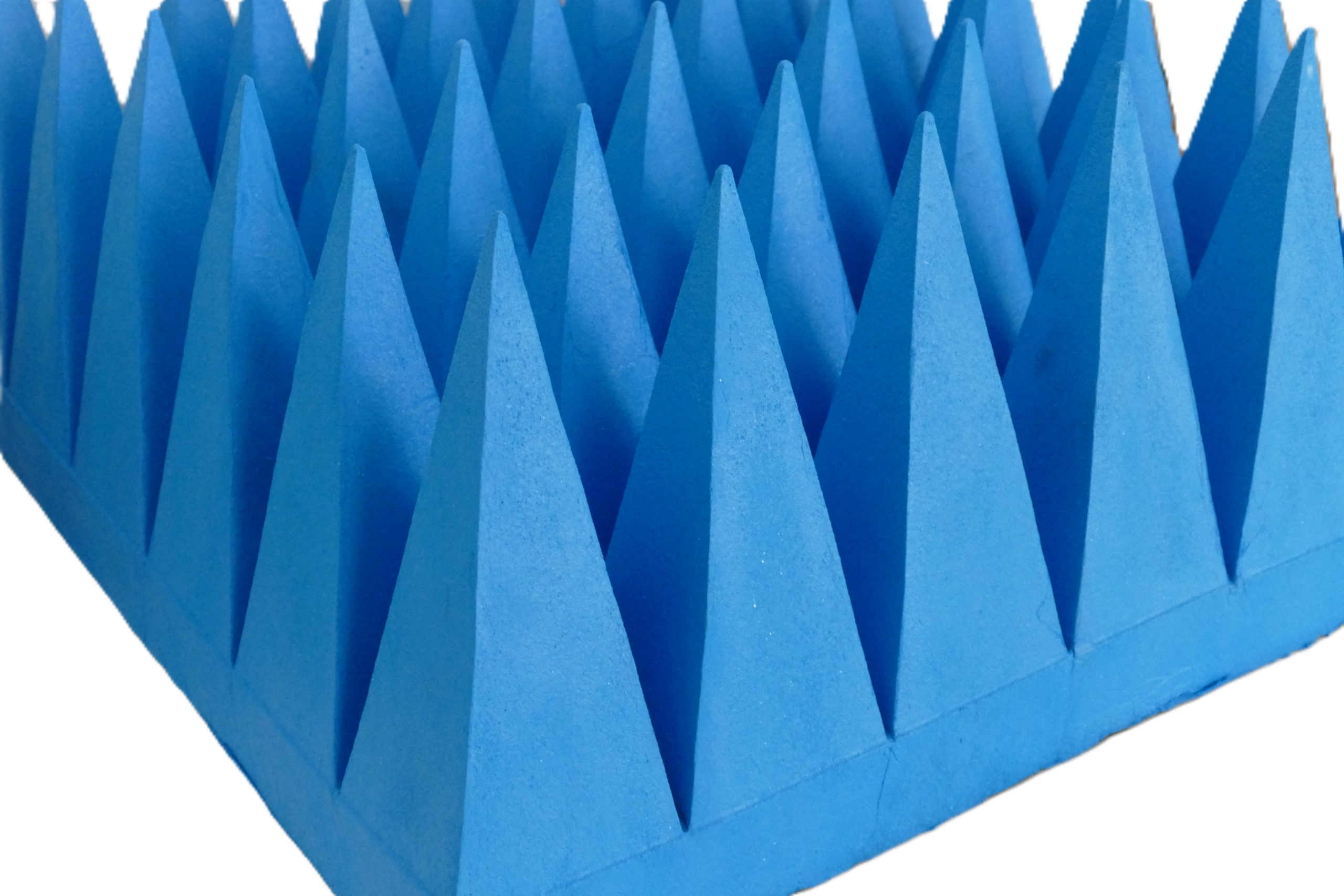

🔺 Pyramidal Absorbers
The most recognizable absorber design used in anechoic chambers.
The gradual taper provides smooth impedance matching between free space and the absorbing material, minimizing reflections over a wide frequency range.
Best for:
• Full anechoic chambers
• EMC compliance testing
• Broadband RF environments
Do not assume a taller pyramid always provides better results.
The absorber must be matched to the required frequency range and chamber design.
▪️ Flat Absorbers
When installation space is limited, flat absorbers become the preferred option.
Unlike pyramidal designs, flat absorbers rely primarily on magnetic loss materials and interference effects.
Best for:
• Shielded enclosures
• Compact EMC chambers
• Test cabinets
• Electronic equipment rooms
Do not expect a flat absorber to replace a full pyramidal chamber wall.
Their purposes are different.
🔷 Ferrite Tile Absorbers
Ferrite tiles remain one of the most effective low-frequency absorber technologies.
Their magnetic properties provide strong attenuation where foam absorbers become physically impractical.
Best for:
• Hybrid chambers
• CISPR testing environments
• Low-frequency EMC measurements
Do not evaluate ferrite tiles using high-frequency performance criteria alone.
Their value lies in low-frequency absorption.
🟦 Hybrid Absorber Systems
Modern EMC facilities often combine ferrite tiles with pyramidal absorbers.
This approach extends performance across a broader frequency range while optimizing chamber dimensions.
Best for:
• Semi-anechoic chambers
• Automotive EMC testing
• Military EMC facilities
The takeaway:
There is no universally superior absorber structure.
The best absorber is the one that matches your frequency range, available space, and testing objectives.
