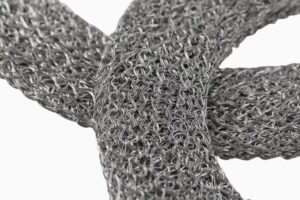

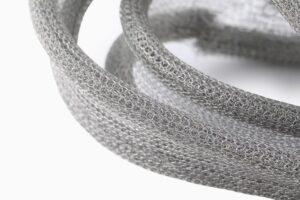

A wire mesh gasket is commonly used to maintain electrical continuity between conductive surfaces in EMI-shielded enclosures. Yet even a suitable gasket can underperform when the installation is poorly designed.
The problem is not always the gasket itself. Mechanical tolerances, surface conditions, compression, and material compatibility can all influence the contact interface.
Here are five installation mistakes worth avoiding when using a wire mesh gasket.
1. Don’t Use the Gasket to Compensate for Poor Mechanical Tolerances
A gasket can accommodate a degree of variation, depending on its construction and specified compression range. It should not be expected to compensate for every structural problem.
If a panel is warped or a flange is uneven, contact pressure may vary along the sealing path. Some areas may be compressed properly while others remain insufficiently engaged.
Before installation, inspect the flatness and alignment of the mating surfaces. Confirm that the mechanical design can provide reasonably consistent contact pressure.
A wire mesh gasket works best when the enclosure geometry supports its intended function.
2. Don’t Ignore the Contact Surface Finish
The electrical interface is just as important as the gasket material.
Paint, insulating coatings, corrosion, dirt, and other surface conditions may interfere with conductive contact where the gasket meets the enclosure. The exact effect depends on the materials and surface treatment involved.
Do not assume that every painted or coated surface will provide a reliable electrical connection. Review the enclosure finish and the gasket’s intended contact arrangement before assembly.
Where necessary, define suitable conductive contact areas in the mechanical design. Any surface preparation should follow the enclosure manufacturer’s requirements to avoid damaging protective coatings or creating corrosion problems.
3. Don’t Cut Corners at Corners and Joints
Corners, joints, and gasket terminations deserve particular attention.
Poorly fitted ends, gaps at corners, or inconsistent joints may interrupt the conductive contact path. These details can be overlooked when the main gasket length appears to be installed correctly.
During design and assembly, consider how the gasket will pass around corners, meet at joints, and terminate at the ends of the sealing path.
The correct approach depends on the enclosure geometry and gasket construction. Avoid assuming that a joint will perform as well as a continuous section without checking the actual design.
4. Don’t Apply Arbitrary Compression
Tightening fasteners as much as possible is not a reliable installation method.
If compression is too low, contact may be incomplete. If it is too high, the gasket or surrounding structure may be damaged. Uneven fastener spacing can also create inconsistent pressure along the interface.
Use the gasket’s specified compression range and follow the enclosure’s assembly requirements. Where the design calls for controlled fastener spacing or torque, incorporate those requirements into the installation procedure.
Consistent assembly helps make the shielding interface more repeatable.
5. Don’t Skip Inspection After Installation
A visually acceptable installation does not necessarily confirm effective EMI shielding.
After assembly, inspect the gasket path, corners, joints, fastening points, and any areas where the gasket could be displaced or damaged. Where required, verify electrical continuity and conduct shielding or EMC testing using the project’s defined method.
If the enclosure fails testing, investigate the complete system rather than immediately assuming that the gasket material is defective.
Other interfaces—including doors, ventilation panels, cable entries, and connectors—may also contribute to the problem.
Choosing a Wire Mesh Gasket for the Application
Before installation, confirm the required dimensions, gasket construction, compression range, enclosure material, and expected operating conditions. If the enclosure will be opened repeatedly, include that requirement in the selection process.
Noordin Etech supplies wire mesh gasket solutions for EMI shielding applications. The appropriate configuration should be confirmed against the actual enclosure design and project requirements.
For more product information, visit the Wire Mesh Gasket product page.
Don’t Assume a Wire Mesh Gasket Will Fix Every EMI Shielding Problem
Conclusion
A wire mesh gasket cannot deliver reliable shielding through material choice alone. The installation details—especially surface contact, corner treatment, compression, and inspection—are essential parts of the overall design.
Avoiding these five mistakes helps reduce installation-related problems and supports more consistent EMI shielding performance.
